How to build a people's car from scratch: the finished product

Yet many of the decisions and conclusions about the P42’s concept, features and inner workings are mature. They could work. Were we able to continue, we believe we have a good basis to do so. Here are the key features…

CONCEPT

The Share P42 is a C-segment five-door hatchback, close in size and duty to today’s VW Golf and Ford Focus and as easy to use and own. It can be configured as a shared car or a light commercial vehicle. It is a pure electric car of about 4.3m in length because, like much of the motor industry, we are content that new cars 10 to 15 years hence will prove that the future is electric – aided by the fact that battery prices are falling fast, batteries themselves are being packaged smaller and lighter, improving chemistry adds 5-10% a year and much faster charging points are on the horizon. Multiply all that by 10 and we’re in a promising place.

Our car is much sleeker and yet much roomier – in both passenger area and luggage space – because we’ve included two hugely important features that, we reckon, will be feasible by 2025-2030. The first is deployable front and side impact protection – in effect, compact external airbags that pop out to protect when a comprehensive package of sensors detects an impending accident.

The second is the decision to design this car without a large, traditional fascia. Instead, we simplify its instruments with head-up displays, use the driver’s smartphone for personal settings and music, and give it a steering boss switchpad and a central touchscreen for primary and secondary controls. The airbags, comparatively small these days, are carried in the car’s pillars. The P42’s heating and ventilation gadgetry fits into engine bay space freed by its use of a single, compact electric drive motor, especially since much of its complex, currently bulky control mechanism will be carried in the cloud.

As a result, much more of the car’s overall length is dedicated to passenger and load carrying. Or to put it another way, the P42 rivals a D-segment (Ford Mondeo-sized) car for passenger and luggage room, except that it’s 20-30cm shorter and 10-15cm narrower. It offers flexible seating for four or five, the possibility of more conventional seating for seven, plus a completely flat floor and a huge rear boot that presents the possibility of a cavernous (and possibly extended) white van version.

One more revolutionary feature was the idea of a solitary light source, piped around the car by a series of mirrors and lenses to be used for headlights, tail-lights, signalling and interior lights – and perhaps even for messaging fellow road users. ‘After You’ displayed on a front screen might be a better message than a flash of the headlights.

DESIGN, STYLING

The P42 is unashamedly modern and challenging, developed from an original concept by Envisage’s Mills. The brief was to be up-to-date, distinctive and highly recognisable because none of us had any interest in a ‘me too’ car for a changed world. Besides, the proportions bear little relationship to today’s Ford Focus or Volkswagen Golf. Tomorrow’s designers will be freer in some ways, more constrained in others. Let them find new ways…

BODY, CHASSIS

We’ve firmed up on the idea of a light, integrated spaceframe formed in aluminium towards the bottom and carbonfibre for the upper structure. We’re cautious about overuse of carbonfibre (CFRP, for carbonfibre-reinforced plastic, is Envisage’s more correct term) because it’s hard to recycle and recycling is about to be a bigger issue. The outer panels are made of seamless impact-resisting plastic, hopefully formed in one of the degradable compounds under serious development right now.

The side doors are a clap-hands design, human-powered to save weight and complexity. They’re brilliant for access in tight parking spaces, and the fact that they don’t need a centre pillar makes for really spectacular access, especially with the seats in a club configuration. The load space will also be spectacular. Our designers have conceived a 600-litre volume accessible from the rear either via a side-opening glass door or a much larger lifting tailgate (containing the door), which reveals a flat, wide floor space.

Instead of using what Le Grice dismisses as “ancient ironwork”, the P42’s seats have carbonfibre frames, which pick up runners integrated into the car’s aluminium floorpan, which also carries the thin, immensely strong and well-protected battery box.

POWERTRAIN

The P42 is proposed as a simple battery electric car, carrying the 100kWh energy pack that, Walsh believes, will be relatively common in the electric cars of 2025-2030. The battery is likely to have shrunk to two-thirds the size of packs today. In a car weighing 1600kg, with a drag factor of around 0.28 and a modest frontal area, it should be good for an honest range of 400 miles. Ultra-fast chargers, on the horizon now, will slash charging times so that this car’s pack should be able to be charged from near zero to 80% in an hour at the most. A get-you-home charge might take as little as five minutes.

Performance? As befits a car that deploys maximum torque from standstill, the P42 will feel quick, but its 0-60mph time will probably be around 8.0sec, with a potential 100mph top speed governed to around 85mph both to save power and because regulations may well demand it. It will be smooth, seamless and almost silent power, though. Driving a manual gearbox, combustion machine from 2016 will seem like stepping back in time.

SUSPENSION, STEERING, BRAKES

By wire will be the way to go. There need be no mechanical connection between driver and motor, or steered wheels or brakes. New systems offer far greater flexibility of steering effort (probably configurable to the driver’s taste) and of integrated retardation between regenerative and friction braking, a current bugbear in hybrid and electric cars. It’s probable the P42’s driver will be offered a range of driving modes, selectable according to taste or loaded automatically via a smartphone app.

Advancing NVH (noise, vibration, harshness) technology will do much more to help: flush glass will lower wind noise, fibrous panels will absorb sound, and ever more careful design of the exterior mirrors will cut wind rush – until these are replaced by much smaller rearward-facing cameras (the kind we have on our bootlids already). In short, very little noise should disturb your conversation or audio quality.

The refinement theme offered by the P42’s near-silent powertrain will continue into the suspension and running gear: it has been configured with thin-section, low-noise tyres on 20in wheels. The all-independent suspension (double wishbones front, space-saving trailing arms rear) will have variable ride rates via magnetic dampers, whose settings are changed by both wheel movements and your sat-nav’s prior knowledge of the road. Sensing technology will sample your car’s grip in arduous conditions and configure the car, juggling its braking or limiting speed.

CABIN

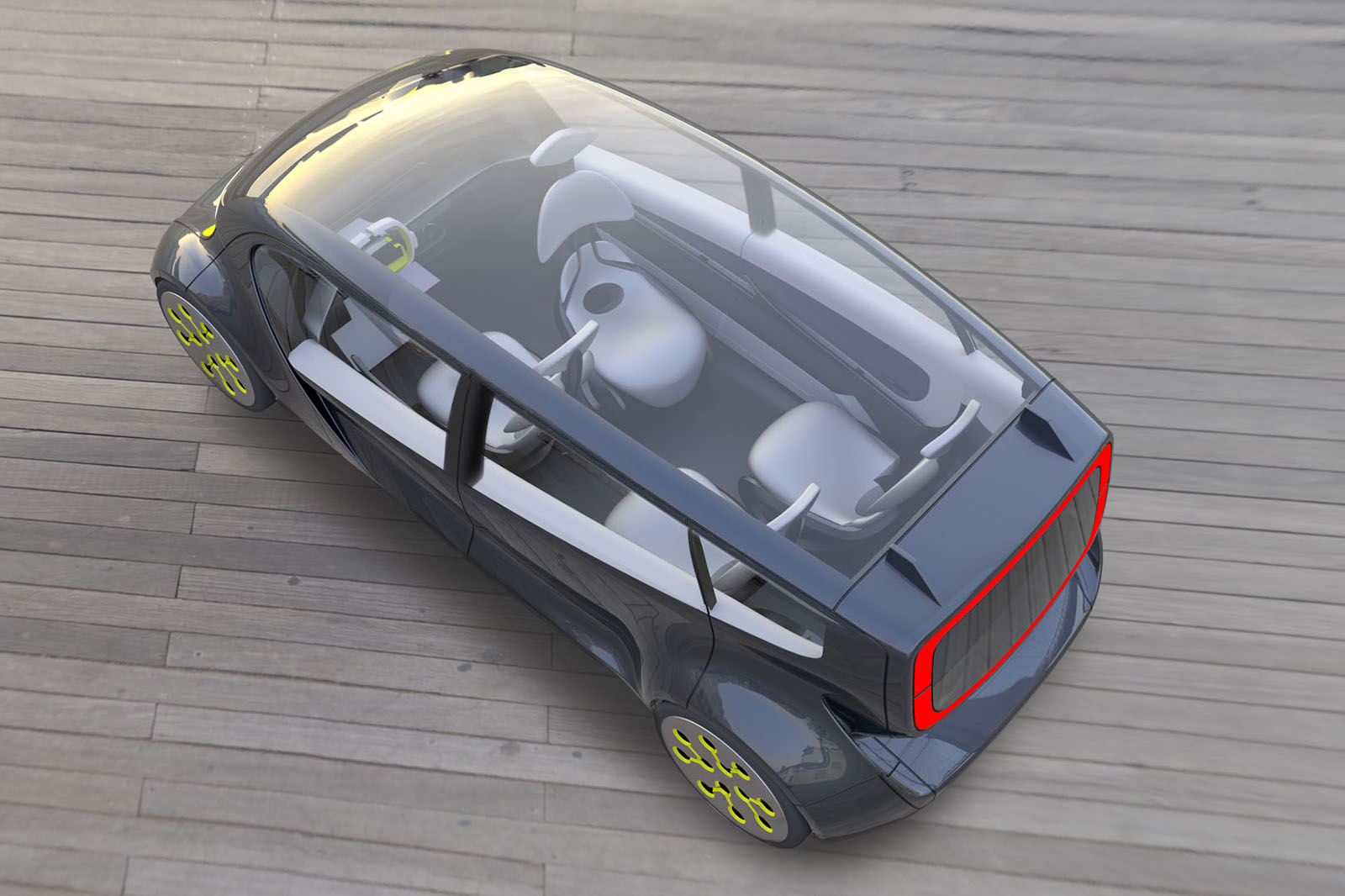

Although it’s a low car, the P42 is uncommonly airy because its screen and windows are large, it has a see-through roof and there’s no bulky ‘furniture’ in its cabin. The seats are skeletal, compact and easy to move. The floor is flat. The doors are large. The steering column (which is likely to stay in place because we’re unsure whether full autonomy will be around – or permitted – when this car is on the road) can be made to fold forward, leaving the screen and switchgear in accessible positions.

Of course, this car is always connected. It reads your preferences from a smartphone app. It communicates via the cloud with others of its ilk for safety’s sake. It monitors your health and tiredness by assessing your pupils. It predicts your likely journey and warns you of hold-ups. It responds to gestures and voice commands far better than today’s imperfect systems. And while doing all this, it is far more intuitive than today's systems. What is more, it is practically impervious to theft, at least as a private car, because it knows your unique fingerprints and the unique pattern of your pupils. And it is never truly ‘off’.
